Tapered roller bearings
You the current location > PRODUCTS > Tapered roller bearings

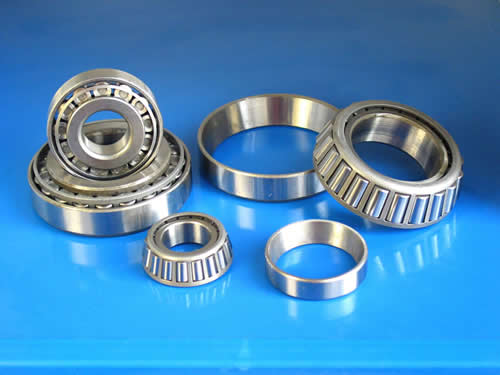

Tapered roller bearings



The tapered roller bearing is mainly used to carry the radially and axially combined load,mostly the radial load.The inner components and the out ring of the bearing are detachable,facilitating assembly and disassembly.The axial loading capacity of bearing depands on the contact angle,the larger which is,the larger the axial loading capacity will be.

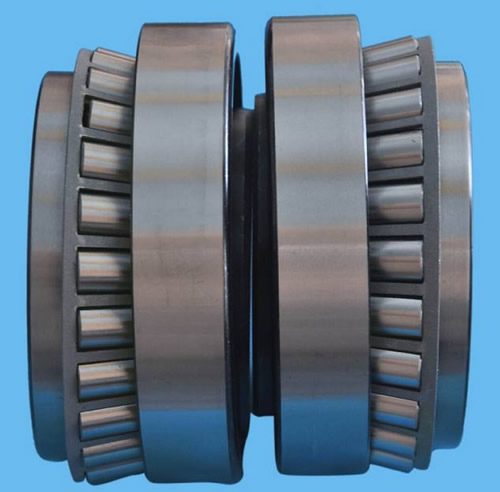

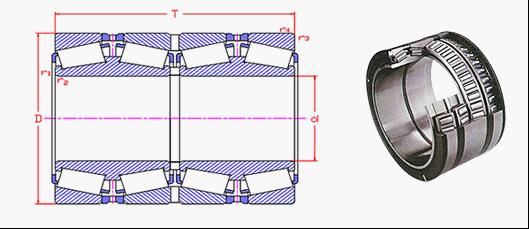

Tapered roller bearing is the largest amount of single row circular cone roller bearings. In the car wheel hub, in recent years is also played by the small size of the double row circular cone roller bearings. Four row circular cone roller bearings used in large cold, hot rolling mill and other heavy machine.

Tapered roller bearing feature:

Tapered roller bearing can bear large radial load and axial load.Because of cone roller bearing can only transfer unilateral axial load, therefore, in order to transfer the opposite direction of the axial load will need another symmetric installed circular cone roller bearings.

Tapered roller bearing main application:

They are widely used in automobile, rolling mill, mining, metallurgy, plastics machinery, etc.


  • 319/800X2	10079/800	800×1060×122	275
    Tapered roller bearings, characteristics and uses:The tapered roller bearings to withstand the radial load mainly radial and axial load, the large cone angle tapered roller bearings can be used to withstand the axial load mainly radial, axial joint load. Such bearings are separable type bearings, the inner ring (including tapered roller and cage) a
  • 33200 Series
    Tapered roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage). The non-separable inner ring and roller assembly is called the cone, and the outer ring is called the cup. Internal clearance is established during mounting by the axial position of
  • 33000 Series
    Tapered roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage). The non-separable inner ring and roller assembly is called the cone, and the outer ring is called the cup. Internal clearance is established during mounting
  • 32300 Series
    Tapered roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage). The non-separable inner ring and roller assembly is called the cone, and the outer ring is called the cup. Internal clearance is established during mounting by the axial position of
  • 32200 Series
    Tapered roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage). The non-separable inner ring and roller assembly is called the cone, and the outer ring is called the cup. Internal clearance is established during mounting by the axial position of
  • 32000 Series
    Tapered roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage). The non-separable inner ring and roller assembly is called the cone, and the outer ring is called the cup. Internal clearance is established during mounting by the axial position of
  • 31300 Series
    Tapered roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage). The non-separable inner ring and roller assembly is called the cone, and the outer ring is called the cup. Internal clearance is established during mounting by the axial position of
  • 30300 Series
    Tapered roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage). The non-separable inner ring and roller assembly is called the cone, and the outer ring is called the cup. Internal clearance is established during mounting by the axial position of
  • 30200 Series
    Tapered roller bearings are separable and have the following components: outer ring, inner ring, and roller assembly (containing the rollers and a cage). The non-separable inner ring and roller assembly is called the cone, and the outer ring is called the cup. Internal clearance is established during mounting by the axial position of
  • Taper roller bearings
    Taper roller bearings comprise solid cone and cup with tapered raceways and tapered rollers with cages. The bearings are not self-retaining. As a result, the inner ring together with the rollers and cage can be fitted separately from the outer ring. it can support axial loads from one direction as well as high radial loads. They must normally
  • 32930    352218     2077144E
    Tapered roller bearings, characteristics and uses:The tapered roller bearings to withstand the radial load mainly radial and axial load, the large cone angle tapered roller bearings can be used to withstand the axial load mainly radial, axial joint load. Such bearings are separable type bearings, the inner ring (including tapered roller and cage) a


Total 11 Record,1/1 Page,Page Show 20 Record 7 No.[1] Page 8
